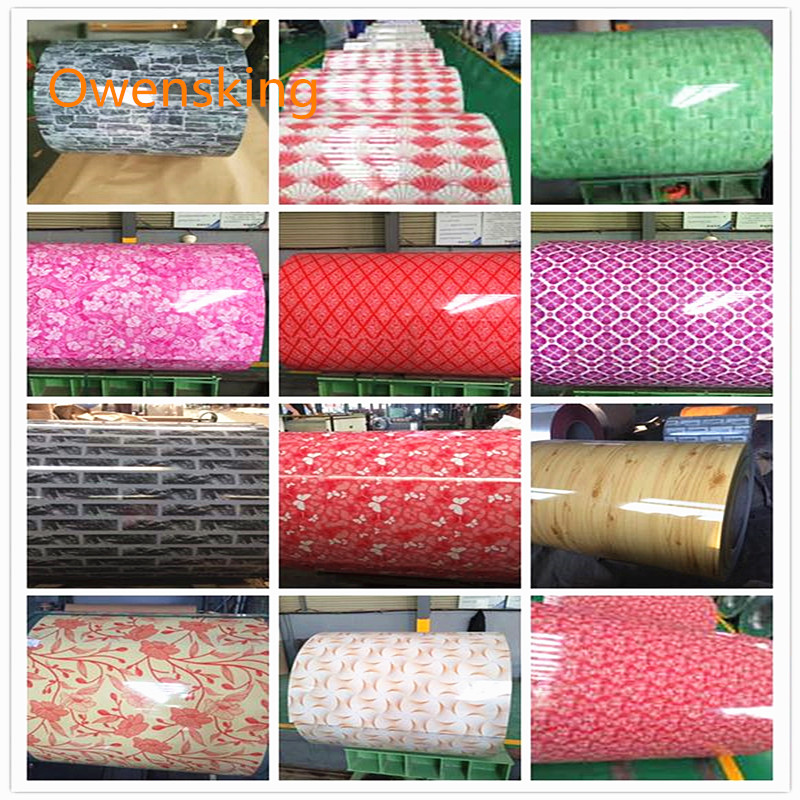

Owensking PPGI Products profile

      Color coated steel plate is hot-dip galvanized steel or galvanized steel plate as the substrate after the surface degreasing, phosphating, acid salt treatment, coated with organic paint by baking and made of products.

    (PE), followed by silicon modified resin (SMP), high weathering polyester (HDP), polyvinylidene fluoride (PVDF), etc., the coating structure of two coating a baking And two coated two bake, the coating thickness is generally 20-28u in the surface, the back of 5-8u, the building should be used during the surface 20-28u, the back 5-8u. Color coated steel plate is generally cited by the United States ASTM A527 (galvanized), ASTM AT92 (galvanized), Japan JIS G3302, Europe EN / 0142, South Korea KS D3506, Baosteel Q / BQB420.

1. Polyester (PE) good adhesion, in the formability and outdoor durability of a wide range of chemical resistance medium. The service life is 7-10 years.

2. Silicon modified resin (SMP)

The coating has good hardness, abrasion resistance and heat resistance, as well as good external durability and no powderiness, gloss retention and flexibility. Life is 10-15 years.

3. High weathering polyester (HDP) (Note: durable color steel plate)

Excellent UV resistance, high durability, and its main properties between polyester and fluorocarbon. Durability depends on the coating (galvanized more 120-240 g / m2, aluminized zinc more100g / m2) and the surface coating of high weathering polyester (HDP), coating thickness of 25um or more, the coating structure of two Tu , Two Tu two bake, etc., maintenance-free life according to the different atmosphere can be 10-12 years.

4. PVDF (PVDF) (Note: high durability color steel plate)

Has good moldability and color retention, excellent outdoor durability and powder, anti-solvent, color is limited. Life is 15-20 years.

The following are the same as the " Color coated steel plate, commonly known as color steel plate, high-quality hot-dip galvanized steel plate or galvanized steel plate as the substrate, after the surface degreasing, phosphating, chromate treatment conversion, coated with organic coating made by baking , With light high strength, colorful, good durability and so on. Widely used in construction, home appliances, decoration, automotive and other fields.

The strength of the color plate depends on the substrate material and thickness, and the high durability depends on the coating (galvanized more 120-240 g / m2, aluminized zinc> more100 g / m2) and surface coated polyvinylidene fluoride (PVDF) Up to 25um or more, the coating structure has two coatings a bake, two coatings two bake, maintenance-free service life according to the different atmosphere can be 15-20 years.

OWENSKING PPGI PPGL GI GL PRODUCT DETAILS
